Valve Type

Line Size

Connection

Pressure (psi)

Cv

More Info

Product Number:

RDM-S-000XX-3-SS-A63TS8

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-A63TS8

Cv value: 7.5000

Pressure: 2200 psi

Connection: ½ in Compression

Line Size: 0.5"

More Info

Product Number:

RDM-S-000XX-3-SS-43GS8

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-43GS8

Cv value: 1.1000

Pressure: 3000 psi

Connection: ½ in Compression

Line Size: 0.5"

More Info

Product Number:

RDM-000XX-3-SS-45ZF8-ND

Valve Type: 5-way valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-45ZF8-ND

Cv value: 3.5000

Pressure: 1500 psi

Connection: ½ in FNPT

Line Size: 0.5"

More Info

Product Number:

RDM-000XX-3-H3DM-SS-IP-R-12

Valve Type: Ball Valve

Valve Manufacturer: Howell

Valve Partnumber: H3DM-SS-IP-R-12

Cv value: 18.0000

Pressure: 1000 psi

Connection: ½ in FNPT

Line Size: 0.5"

More Info

Product Number:

RDM-000XX-3-SS-45YTF8

Valve Type: 4-way valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-45YTF8

Cv value: 1.6000

Pressure: 1500 psi

Connection: ½ in FNPT

Line Size: 0.5"

More Info

Product Number:

RDM-000XX-3-1733UT-SE-050-BAB180

Valve Type: 3-way valve

Valve Manufacturer: AVCO

Valve Partnumber: 1733UT-SE-050-BAB180

Cv value: 6.0000

Pressure: 2000 psi

Connection: ½ in NPT

Line Size: 0.5"

More Info

Product Number:

RDM-000XX-3-SS-AFSS8

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-AFSS8

Cv value: 7.2000

Pressure: 6000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

RDM-S-000XX-3-SS-42GS4

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-42GS4

Cv value: 0.6000

Pressure: 5000 psi

Connection: ¼ in Compression

Line Size: 0.25"

More Info

Product Number:

RDM-S-000XX-3-SS-43GXS4

Valve Type: 3-way valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-43GXS4

Cv value: 0.9000

Pressure: 2500 psi

Connection: ¼ in compression

Line Size: 0.25"

More Info

Product Number:

RDM-S-000XX-3-SS-43GS4

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-43GS4

Cv value: 1.4000

Pressure: 3000 psi

Connection: ¼ in Compression

Line Size: 0.25"

More Info

Product Number:

RDM-S-B00XX-1-A7853A

Valve Type: 3-way valve

Valve Manufacturer: Rego

Valve Partnumber: A7853A

Cv value: 0.0000

Pressure: 400 psi

Connection: ¼ in FNPT

Line Size: 0.25"

More Info

Product Number:

RDM-S-000XX-3-5H-22HBRT

Valve Type: Ball valve

Valve Manufacturer: Jamesbury

Valve Partnumber: 5H-22HBRT

Cv value: 6.0000

Pressure: 4500 psi

Connection: ¼ in FNPT

Line Size: 0.25"

More Info

Product Number:

RDM-S-000XX-3-SS-4SKPM4-LH-SHD

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4SKPM4-LH-SHD

Cv value: 1.1000

Pressure: 6000 psi

Connection: ¼ in NPT

Line Size: 0.25"

More Info

Product Number:

RDM-000XX-3-GMS-SS-43GXS4-NHS

Valve Type: 3-way valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-43GXS4-NHS

Cv value: 0.9000

Pressure: 3000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

RDM-000XX-3-SS-43GXS4

Valve Type: 3-way valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-43GXS4

Cv value: 0.9000

Pressure: 3000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

RDM-000XX-3-SS-8GBS12

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-8GBS12

Cv value: 10.0000

Pressure: 5800 psi

Connection: ¾ in Compression

Line Size: 0.75"

More Info

Product Number:

RDM-S-000XX-3-SS-43GXS6

Valve Type: 3-way valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-43GXS6

Cv value: 2.0000

Pressure: 2500 psi

Connection: ⅜ in compression

Line Size: 0.375"

More Info

Product Number:

RDM-S-000XX-3-3778T921

Valve Type: Ball valve

Valve Manufacturer: McMaster

Valve Partnumber: 3778T921

Cv value: 8.0000

Pressure: 1440 psi

Connection: ⅜ in FNPT

Line Size: 0.375"

More Info

Product Number:

RDM-S-000XX-3-3-SS-83KS6

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-83KS6

Cv value: 1.4000

Pressure: 6000 psi

Connection: ⅜ in NPT

Line Size: 0.375"

More Info

Product Number:

RDM-S-B00XX-1-C407-10-05

Valve Type: Internal valve

Valve Manufacturer: Fisher

Valve Partnumber: C407-10-05

Cv value: 0.0000

Pressure: 400 psi

Connection: 1 ¼ in FNPT

Line Size: 1.25"

More Info

Product Number:

RDM-S-B00XX-1-A3209D-050

Valve Type: Internal valve

Valve Manufacturer: Rego

Valve Partnumber: A3209D-050

Cv value: 0.0000

Pressure: 500 psi

Connection: 1 ¼ in FNPT

Line Size: 1.25"

More Info

Product Number:

RDM-S-B00XX-1-ME990M-10

Valve Type: Internal valve

Valve Manufacturer: Marshall Excelsior

Valve Partnumber: ME990M-10

Cv value: 0.0000

Pressure: 400 psi

Connection: 1 ¼ in FNPT

Line Size: 1.25"

More Info

Product Number:

RDM-S-B00XX-1-A6010

Valve Type: ESV valve

Valve Manufacturer: Rego

Valve Partnumber: A6010

Cv value: 0.0000

Pressure: 400 psi

Connection: 1 ¼ in FNPT

Line Size: 1.25"

More Info

Product Number:

RDM-000XX-3-SS-65TW16T65-3

Valve Type: Ball valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-65TW16T65-3

Cv value: 36.0000

Pressure: 2200 psi

Connection: 1 in Tube ext.

Line Size: 1"

More Info

Product Number:

RDM-S-B00XX-1-A3212

Valve Type: Internal valve

Valve Manufacturer: Rego

Valve Partnumber: A3212

Cv value: 0.0000

Pressure: 500 psi

Connection: 2 in FNPT

Line Size: 2"

More Info

Product Number:

RDM-S-B00XX-1-ME990-16

Valve Type: Internal valve

Valve Manufacturer: Marshall Excelsior

Valve Partnumber: ME990-16

Cv value: 0.0000

Pressure: 260 psi

Connection: 2 in FNPT

Line Size: 2"

More Info

Product Number:

RDM-S-B00XX-1-N551-16

Valve Type: ESV valve

Valve Manufacturer: Fisher

Valve Partnumber: N551-16

Cv value: 0.0000

Pressure: 400 psi

Connection: 2 in FNPT

Line Size: 2"

More Info

Product Number:

RDM-S-B00XX-1-ME992-16

Valve Type: Internal valve

Valve Manufacturer: Marshall Excelsior

Valve Partnumber: ME992-16

Cv value: 0.0000

Pressure: 400 psi

Connection: 2 in FNPT

Line Size: 2"

More Info

Product Number:

RDM-S-B00XX-1-ME990-24

Valve Type: Internal valve

Valve Manufacturer: Marshall Excelsior

Valve Partnumber: ME990-24

Cv value: 0.0000

Pressure: 400 psi

Connection: 3 in FNPT

Line Size: 3"

More Info

Product Number:

RDM-S-B00XX-1-A3213

Valve Type: Internal valve

Valve Manufacturer: Rego

Valve Partnumber: A3213

Cv value: 0.0000

Pressure: 500 psi

Connection: 3 in FNPT

Line Size: 3"

More Info

Product Number:

RDU-S-B00XX-3-A3217AR410

Valve Type: Internal valve

Valve Manufacturer: Rego

Valve Partnumber: A3217AR410

Cv value: 0.0000

Pressure: 400 psi

Connection: 3 in FNPT

Line Size: 3"

More Info

Product Number:

RDM-S-B00XX-1-N551-24

Valve Type: ESV valve

Valve Manufacturer: Fisher

Valve Partnumber: N551-24

Cv value: 0.0000

Pressure: 400 psi

Connection: 3 in FNPT

Line Size: 3"

More Info

Product Number:

RDU-S-B00XX-1-A3219

Valve Type: Internal valve

Valve Manufacturer: Rego

Valve Partnumber: A3219

Cv value: 0.0000

Pressure: 500 psi

Connection: 4 in FNPT

Line Size: 4"

More Info

Product Number:

RDM-000XX-0-Actuator-only

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

RDM-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

RDH-000XX-0-Actuator-only

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

RDM-S-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

Specifications

Ex-proof Rating Class I, Div 1 Groups B, C, D / T6
Class II Groups E, F, G / T6 (85 °C)
IECEx & CSA certification

Voltages/Current 12-24 VDC, max 3 A @ 24 VDC
110-240 VAC, max 1.5 A @ 240 VAC

Control Options TTL, Modbus RS485

Feedback Standard: 5 V at 2.5 mA max
Option: 24 V at 1 A max



Output Torque Range 212 – 1050 in-lbs

Output Speed Range 1 – 15 seconds per quarter-turn

Positioning Precision +/- 3°



Add-On Options Manual override
Battery backup for fail-safe operation
110-240 VAC power option

External temp. range -40 – 65 °C (Heater option)

Life Expectancy 250,000 cycles in specified conditions

Motor Brushless DC motor, computer control

Enclosure Aluminum or stainless steel (NEMA 4 / IP56)

Range/Speed Setting Adjustable by DIP switches inside enclosure

Power Setting Adjustable by DIP switches inside enclosure

End Travel Detection For needle valves, by motion detection



HazLoc Quarter-Turn Actuators Spec Sheet

User Manuals

RDx TTL
(RDM, RDH, and RDF)


Quarter-turn actuators housed in HazLoc enclosures, with TTL control signal and integrated feedback.
Download



Rxx Modbus
(RCJ, RCL, RCM, RCH, RCF, RDM, RDH, and RDF)


Variable or discrete position actuators housed in HazLoc enclosures, with Modbus RS485 protocol.
Download



RDx Battery Backup
(RDM-B, RDH-B, and RDF-B)


Discrete position actuators with battery backup fail-safe housed in HazLoc enclosures.
Download



RDx 110 VAC Power
(RDM-AC, RDH-AC, and RDF-AC)


110 VAC operated quarter-turn actuators housed in HazLoc enclosures, with TTL control signal and integrated feedback.
Download



R-Series Part Number Guide

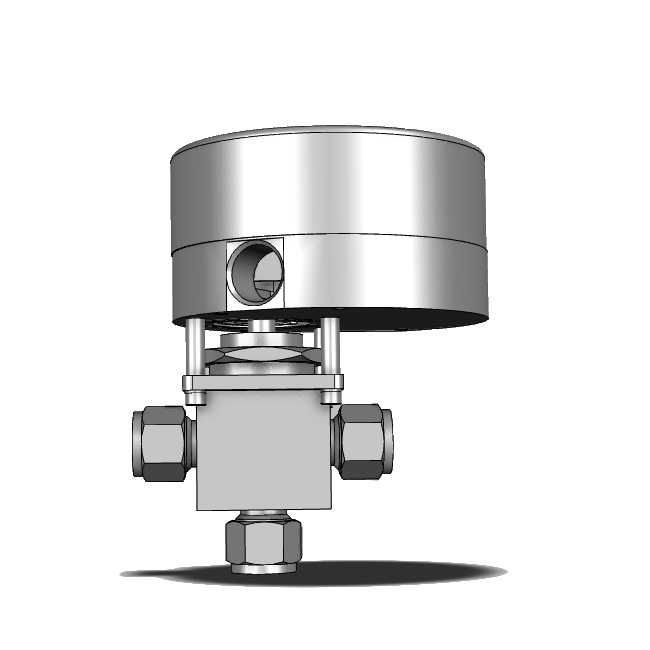

3D Drawings

Scroll our list of downloadable 3D files. Please do not hesitate to contact us if you are unable to find your desired CAD drawing or need custom files. You can use any 3D software to view the .STEP files.
