Product Number:
MDM-000XX-3-H280F-SS-IP-R-12Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H280F-SS-IP-R-12
Cv value: 15.0000
Pressure: 2000 psi
Connection: ½ in. FNPT
Line Size: 0.5"
Product Number:
MDM-000XX-3-H35F-SS-IP-S-12Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H35F-SS-IP-S-12
Cv value: 17.0000
Pressure: 2000 psi
Connection: ½ in. FNPT
Line Size: 0.5"
Product Number:

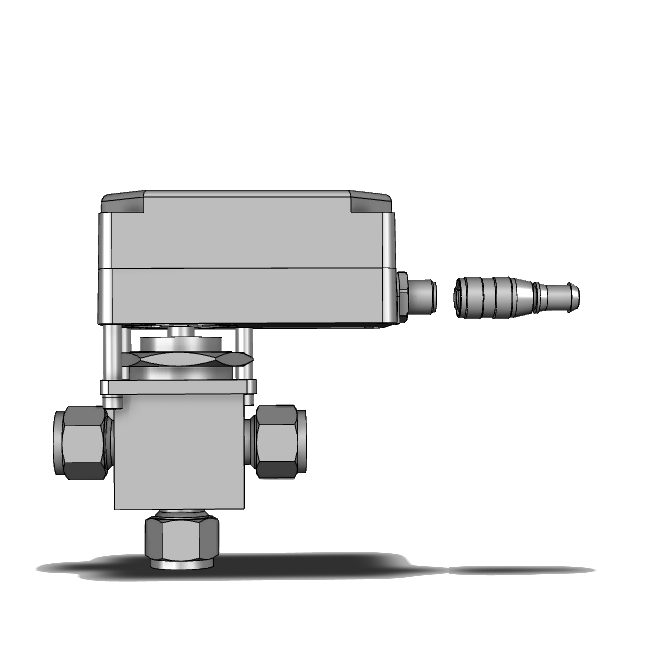

MDM-000XX-3-SS-45XS8Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-45XS8
Cv value: 4.6000
Pressure: 1500 psi
Connection: ½ in. Compression
Line Size: 0.5"
Product Number:
MDM-000XX-3-SS-45S8Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-45S8
Cv value: 10.0000
Pressure: 1500 psi
Connection: ½ in. Compression
Line Size: 0.5"
Product Number:
MDM-000XX-3-SS-63PS8-2839Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-63PS8-2839
Cv value: 11.6000
Pressure: 2500 psi
Connection: ½ in. Compression
Line Size: 0.5"
Product Number:
MDM-000XX-3-5H-36HBRTValve Type: Ball valve
Valve Manufacturer: Jamesbury
Valve Partnumber: 5H-36HBRT
Cv value: 13.0000
Pressure: 2000 psi
Connection: ½ in. FNPT
Line Size: 0.5"
Product Number:
MDM-000XX-3-Habonim-C28Valve Type: Cryogenic valve
Valve Manufacturer: Habonim
Valve Partnumber: Habonim-C28
Cv value: 8.0000
Pressure: 6000 psi
Connection: ½ in. FNPT
Line Size: 0.5"
Product Number:
MDM-000XX-3-H3DM-SS-IP-R-12Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H3DM-SS-IP-R-12
Cv value: 18.0000
Pressure: 1000 psi
Connection: ½ in. NPT
Line Size: 0.5"
Product Number:
MDM-000XX-3-H280F-SS-IP-R-14Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H280F-SS-IP-R-14
Cv value: 15.0000
Pressure: 2000 psi
Connection: ¼ in. FNPT
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-43GS4Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-43GS4
Cv value: 1.4000
Pressure: 3000 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-43GXS4Valve Type: 3-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-43GXS4
Cv value: 0.9000
Pressure: 2500 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-H83XPS4Valve Type: 3-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-H83XPS4
Cv value: 0.7500
Pressure: 10000 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-H83PS4Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-H83PS4
Cv value: 1.6000
Pressure: 10000 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-6FKBFK4Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-6FKBFK4
Cv value: 0.5000
Pressure: 20000 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-62XTS4Valve Type: 3-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-62XTS4
Cv value: 1.2000
Pressure: 1000 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-43GXLS4Valve Type: 3-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-43GXLS4
Cv value: 0.9000
Pressure: 2500 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-20-72LF4Valve Type: 3-way valve
Valve Manufacturer: HIP
Valve Partnumber: 20-72LF4
Cv value: 0.1500
Pressure: 20000 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-42GXS4Valve Type: 3-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-42GXS4
Cv value: 0.3500
Pressure: 3000 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-4A-MB6LPFA-SSPValve Type: Ball valve
Valve Manufacturer: Parker
Valve Partnumber: 4A-MB6LPFA-SSP
Cv value: 1.0200
Pressure: 3000 psi
Connection: ¼ in. Compression
Line Size: 0.25"
Product Number:
MDM-000XX-3-7921F4YValve Type: Ball valve
Valve Manufacturer: Hoke
Valve Partnumber: 7921F4Y
Cv value: 0.5400
Pressure: 6000 psi
Connection: ¼ in. FNPT
Line Size: 0.25"
Product Number:
MDH-000XX-3-5K103-HT-20-20-20-20-20BValve Type: 5-way valve
Valve Manufacturer: BuTech
Valve Partnumber: 5K103-20-20-20-20-20B
Cv value: 0.5600
Pressure: 10000 psi
Connection: ¼ in. FNPT
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-45YF4Valve Type: 4-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-45YF4
Cv value: 1.6000
Pressure: 3000 psi
Connection: ¼ in. FNPT
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-H83XPF4Valve Type: 3-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-H83XPF4
Cv value: 0.7500
Pressure: 10000 psi
Connection: ¼ in. FNPT
Line Size: 0.25"
Product Number:
MDH-000XX-3-SS-T63MF4Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-T63MF4
Cv value: 0.8500
Pressure: 1000 psi
Connection: ¼ in. FNPT
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-43GF4Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-43GF4
Cv value: 0.9000
Pressure: 3000 psi
Connection: ¼ in. FNPT
Line Size: 0.25"
Product Number:
MDM-000XX-3-4Z-MB6XPFA-SSPValve Type: 3-way valve
Valve Manufacturer: Parker
Valve Partnumber: 4Z-MB6XPFA-SSP
Cv value: 0.7000
Pressure: 3000 psi
Connection: ¼ in. NPT
Line Size: 0.25"
Product Number:
MDM-000XX-3-3778T911Valve Type: Ball valve
Valve Manufacturer: McMaster
Valve Partnumber: 3778T911
Cv value: 8.0000
Pressure: 1440 psi
Connection: ¼ in. NPT
Line Size: 0.25"
Product Number:
MDM-000XX-3-2B4S20M9-KValve Type: Ball valve
Valve Manufacturer: Parker
Valve Partnumber: 2B4S20M9-K
Cv value: 3.5100
Pressure: 20000 psi
Connection: ¼ in. SF562CX20
Line Size: 0.25"
Product Number:
MDM-000XX-3-2B4S20M9Valve Type: Ball valve
Valve Manufacturer: Parker
Valve Partnumber: 2B4S20M9
Cv value: 1.5100
Pressure: 20000 psi
Connection: ¼ in. SF562CX20
Line Size: 0.25"
Product Number:
MDM-000XX-3-SS-43YTFS2Valve Type: 4-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-43YTFS2
Cv value: 0.0800
Pressure: 2500 psi
Connection: ⅛ in. Compression
Line Size: 0.125"
Product Number:
MDM-000XX-3-SS-43Z6FS2Valve Type: 7-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-43Z6FS2
Cv value: 0.0700
Pressure: 2500 psi
Connection: ⅛ in. Compression
Line Size: 0.125"
Product Number:
MDM-000XX-3-SS-41GXS2Valve Type: 3-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-41GXS2
Cv value: 0.1500
Pressure: 2500 psi
Connection: ⅛ in. Compression
Line Size: 0.125"
Product Number:
MDM-000XX-3-SS-41GS2Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-41GS2
Cv value: 0.2000
Pressure: 2500 psi
Connection: ⅛ in. Compression
Line Size: 0.125"
Product Number:
MDM-000XX-3-SS-43ZF2Valve Type: 5-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-43ZF2
Cv value: 0.0700
Pressure: 2500 psi
Connection: ⅛ in. FNPT
Line Size: 0.125"
Product Number:
MDM-000XX-3-B-43YTF2Valve Type: 4-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: B-43YTF2
Cv value: 0.0800
Pressure: 3000 psi
Connection: ⅛ in. FNPT
Line Size: 0.125"
Product Number:
MDH-000XX-3-SS-AFSF12Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-AFSF12
Cv value: 7.8000
Pressure: 6000 psi
Connection: ¾ in. Compression
Line Size: 0.75"
Product Number:
MDM-000XX-3-SS-8GBS12Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-8GBS12
Cv value: 10.0000
Pressure: 5800 psi
Connection: ¾ in. Compression
Line Size: 0.75"
Product Number:
MDH-000XX-3-10-80LF12Valve Type: Ball valve
Valve Manufacturer: HIP
Valve Partnumber: 10-80LF12
Cv value: 10.0000
Pressure: 10000 psi
Connection: ¾ in. Compression
Line Size: 0.75"
Product Number:
MDM-000XX-3-SS-63TS12Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-63TS12
Cv value: 13.6000
Pressure: 2200 psi
Connection: ¾ in. Compression
Line Size: 0.75"
Product Number:
MDH-000XX-3-2B6S20M12Valve Type: Ball valve
Valve Manufacturer: Parker
Valve Partnumber: 2B6S20M12
Cv value: 3.5100
Pressure: 20000 psi
Connection: ¾ in. Compression
Line Size: 0.75"
Product Number:
MDH-000XX-3-20BV6T12MFValve Type: Ball valve
Valve Manufacturer: PHP
Valve Partnumber: 20BV6T12MF
Cv value: 3.5100
Pressure: 20000 psi
Connection: ¾ in. Compression
Line Size: 0.75"
Product Number:
MDM-000XX-3-H3DM-SS-IP-S-34Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H3DM-SS-IP-S-34
Cv value: 42.0000
Pressure: 1000 psi
Connection: ¾ in. FNPT
Line Size: 0.75"
Product Number:
MDM-000XX-3-H280F-SS-IP-R-34Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H280F-SS-IP-R-34
Cv value: 38.0000
Pressure: 2000 psi
Connection: ¾ in. FNPT
Line Size: 0.75"
Product Number:
MDM-000XX-3-1933TT-SE-075-BAV45Valve Type: Ball valve
Valve Manufacturer: AVCO
Valve Partnumber: 1933TT-SE-075-BAV45
Cv value: 7.8300
Pressure: 2000 psi
Connection: ¾ in. FNPT
Line Size: 0.75"
Product Number:
MDM-000XX-3-9FB3600XTB-34Valve Type: Ball valve
Valve Manufacturer: Jamesbury
Valve Partnumber: 9FB3600XTB-34
Cv value: 33.0000
Pressure: 2000 psi
Connection: ¾ in. FNPT
Line Size: 0.75"
Product Number:
MDH-000XX-3-H35F-CS-IP-S-34Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H35F-CS-IP-S-34
Cv value: 38.0000
Pressure: 2000 psi
Connection: ¾ in. FNPT
Line Size: 0.75"
Product Number:
MDM-000XX-3-34-9FB-3600-XTBValve Type: Ball valve
Valve Manufacturer: Jamesbury
Valve Partnumber: 34-9FB-3600-XTB
Cv value: 33.0000
Pressure: 2000 psi
Connection: ¾ in. FNPT
Line Size: 0.75"
Product Number:
MDM-000XX-3-SS-44S6Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-44S6
Cv value: 6.0000
Pressure: 3000 psi
Connection: ⅜ in. Compression
Line Size: 0.375"
Product Number:
MDM-000XX-3-SS-44XS6Valve Type: 3-way valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-44XS6
Cv value: 2.0000
Pressure: 3000 psi
Connection: ⅜ in. Compression
Line Size: 0.375"
Product Number:
MDM-000XX-3-6Z-MB6XPFA-SSPValve Type: 3-way valve
Valve Manufacturer: Parker
Valve Partnumber: 6Z-MB6XPFA-SSP
Cv value: 0.7000
Pressure: 3000 psi
Connection: ⅜ in. Compression
Line Size: 0.375"
Product Number:
MDM-000XX-3-SS-43GS6Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-43GS6
Cv value: 1.5000
Pressure: 3000 psi
Connection: ⅜ in. Compression
Line Size: 0.375"
Product Number:
MDM-000XX-3-6A-MB6XPFA-SSPValve Type: 3-way valve
Valve Manufacturer: Parker
Valve Partnumber: 6A-MB6XPFA-SSP
Cv value: 0.7000
Pressure: 3000 psi
Connection: ⅜ in. Compression
Line Size: 0.375"
Product Number:
MDM-000XX-3-6Z-B6LJ2-SSP-LDValve Type: Ball valve
Valve Manufacturer: Parker
Valve Partnumber: 6Z-B6LJ2-SSP-LD
Cv value: 2.3400
Pressure: 6000 psi
Connection: ⅜ in. Compression
Line Size: 0.375"
Product Number:
MDM-000XX-3-XV600P-8-6Valve Type: 6-way valve
Valve Manufacturer: Parker
Valve Partnumber: XV600P-8-6
Cv value: 0.0000
Pressure: 150 psi
Connection: ⅜ in. FNPT
Line Size: 0.375"
Product Number:
MDM-000XX-3-C5316012360DValve Type: 5-way valve
Valve Manufacturer: Conant Controls
Valve Partnumber: C5316012360D
Cv value: 2.0000
Pressure: 1000 psi
Connection: ⅜ in. FNPT
Line Size: 0.375"
Product Number:
MDM-000XX-3-3778T921Valve Type: Ball valve
Valve Manufacturer: McMaster
Valve Partnumber: 3778T921
Cv value: 8.0000
Pressure: 1440 psi
Connection: ⅜ in. NPT
Line Size: 0.375"
Product Number:
MDH-000XX-3-1133PG-SE-038Valve Type: Ball valve
Valve Manufacturer: AVCO
Valve Partnumber: 1133PG-SE-038
Cv value: 18.0000
Pressure: 2000 psi
Connection: ⅜ in. NPT
Line Size: 0.375"
Product Number:
MDH-000XX-3-H280F-SS-IP-R-112Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H280F-SS-IP-R-112
Cv value: 195.0000
Pressure: 2000 psi
Connection: 1 ½ in. FNPT
Line Size: 1.5"
Product Number:
MDF-000XX-3-367F-C6666MMCC3YValve Type: Ball Valve
Valve Manufacturer: INLINE
Valve Partnumber: 367F-C6666MMCC3Y
Cv value: 40.0000
Pressure: 800 psi
Connection: 1 ½ in. FNPT
Line Size: 1.5"
Product Number:
MDH-000XX-3-SS-65TS16Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: SS-65TS16
Cv value: 40.0000
Pressure: 2200 psi
Connection: 1 in. Compression
Line Size: 1"
Product Number:
MDH-000XX-3-1133TT-150-100Valve Type: Ball valve
Valve Manufacturer: AVCO
Valve Partnumber: 1133TT-150-100
Cv value: 10.0000
Pressure: 2000 psi
Connection: 1 in. Flanged
Line Size: 1"
Product Number:
MDH-000XX-3-1-9FB-3600-XTBValve Type: Ball Valve
Valve Manufacturer: Jamesbury
Valve Partnumber: 1-9FB-3600-XTB
Cv value: 44.0000
Pressure: 2000 psi
Connection: 1 in. FNPT
Line Size: 1"
Product Number:
MDF-000XX-3-1133PG-SE-100Valve Type: Ball Valve
Valve Manufacturer: AVCO
Valve Partnumber: 1133PG-SE-100
Cv value: 82.0000
Pressure: 2000 psi
Connection: 1 in. FNPT
Line Size: 1"
Product Number:
MDH-000XX-3-H280F-SS-IP-R-100Valve Type: Ball valve
Valve Manufacturer: Howell
Valve Partnumber: H280F-SS-IP-R-100
Cv value: 65.0000
Pressure: 2000 psi
Connection: 1 in. FNPT
Line Size: 1"
Product Number:
MDH-000XX-3-1.5-9FB-3600-XTBValve Type: Ball Valve
Valve Manufacturer: Jamesbury
Valve Partnumber: 1.5-9FB-3600-XTB
Cv value: 95.0000
Pressure: 2000 psi
Connection: 1½ in. FNPT
Line Size: 1.5"
Product Number:
MDF-000XX-3-K3IIDIR2-12Valve Type: Ball Valve
Valve Manufacturer: Steeltrade
Valve Partnumber: K3IIDIR2-12
Cv value: 520.0000
Pressure: 900 psi
Connection: 2 ½ in. FNPT
Line Size: 2.5"
Product Number:
MDH-000XX-3-T200Valve Type: Ball valve
Valve Manufacturer: Quadrant
Valve Partnumber: T200
Cv value: 10.0000
Pressure: 1000 psi
Connection: 2 in. FNPT
Line Size: 2"
Product Number:
MDF-000XX-3-1133PG-SE-200Valve Type: Ball Valve
Valve Manufacturer: AVCO
Valve Partnumber: 1133PG-SE-200
Cv value: 400.0000
Pressure: 2000 psi
Connection: 2 in. FNPT
Line Size: 2"
Product Number:
MDH-000XX-3-VV020726P0AValve Type: Ball valve
Valve Manufacturer: Victaulic
Valve Partnumber: VV020726P0A
Cv value: 180.0000
Pressure: 1000 psi
Connection: 2 in. Grooved
Line Size: 2"
Product Number:
MDH-000XX-3-V020726X01Valve Type: Ball valve
Valve Manufacturer: Victaulic
Valve Partnumber: V020726X01
Cv value: 180.0000
Pressure: 1000 psi
Connection: 2 in. Grooved
Line Size: 2"
Product Number:
MDM-000XX-3-TBH1200ASTEK000Valve Type: Ball valve
Valve Manufacturer: Hayward
Valve Partnumber: TBH1200ASTEK000
Cv value: 150.0000
Pressure: 235 psi
Connection: 2 in. Threaded
Line Size: 2"
Product Number:
MDH-000XX-3-BFV-WCD4BCPH200Valve Type: Butterfly valve
Valve Manufacturer: Quadrant
Valve Partnumber: BFV-WCD4BCPH200
Cv value: 125.0000
Pressure: 200 psi
Connection: 2 in. Wafer
Line Size: 2"
Product Number:
MDF-000XX-3-H3DM-SS-IP-R-3Valve Type: Ball Valve
Valve Manufacturer: Howell
Valve Partnumber: H3DM-SS-IP-R-3
Cv value: 380.0000
Pressure: 1000 psi
Connection: 3 in. FNPT
Line Size: 3"
Product Number:
MDH-000XX-3-BFV-LCD4BCPH300Valve Type: Butterfly valve
Valve Manufacturer: Quadrant
Valve Partnumber: BFV-LCD4BCPH300
Cv value: 302.0000
Pressure: 200 psi
Connection: 3 in. Lug
Line Size: 3"
Product Number:
MDH-000XX-3-TBH1400A0SEK000Valve Type: Ball valve
Valve Manufacturer: Hayward
Valve Partnumber: TBH1400A0SEK000
Cv value: 600.0000
Pressure: 235 psi
Connection: 4 in. Threaded
Line Size: 4"
Product Number:
MDM-000XX-3-B-63TS10Valve Type: Ball valve
Valve Manufacturer: Swagelok
Valve Partnumber: B-63TS10
Cv value: 0.9000
Pressure: 1500 psi
Connection: 5/8 in. Compression
Line Size: 0.625"
Product Number:
MDM-000XX-3-2B6S20M9Valve Type: Ball valve
Valve Manufacturer: Parker
Valve Partnumber: 2B6S20M9
Cv value: 3.5100
Pressure: 20000 psi
Connection: 9/16 in. SF562CX20
Line Size: 0.5625"
Product Number:
MDM-000XX-0-Actuator-onlyValve Type: Actuator only
Valve Manufacturer:
Valve Partnumber: N/A
Cv value: 0.0000
Pressure: 0 psi
Connection: N/A
Line Size: 0"
Product Number:
MDH-000XX-1-Including-mounting-kitValve Type: Actuator Only
Valve Manufacturer:
Valve Partnumber: N/A
Cv value: 0.0000
Pressure: 0 psi
Connection: N/A
Line Size: 0"
Product Number:
MDM-000XX-1-Including-mounting-kitValve Type: Actuator only
Valve Manufacturer:
Valve Partnumber: N/A
Cv value: 0.0000
Pressure: 0 psi
Connection: N/A
Line Size: 0"
Product Number:
MDM-HT-000XX-1-Including-mounting-kitValve Type: High Temp Mounting Kit
Valve Manufacturer:
Valve Partnumber: N/A
Cv value: 0.0000
Pressure: 0 psi
Connection: N/A
Line Size: 0"
Product Number:
MDF-000XX-1-Including-mounting-kitValve Type: Actuator only
Valve Manufacturer:
Valve Partnumber: N/A
Cv value: 0.0000
Pressure: 0 psi
Connection: N/A
Line Size: 0"
