for

Valve Type

Line Size

Connection

Pressure (psi)

Cv

More Info

Product Number:

RCM-000XX-3-SS-1RS8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1RS8

Cv value: 0.7300

Pressure: 5000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

RCM-000XX-3-SS-12NRS8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NRS8

Cv value: 1.8000

Pressure: 6000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

RCM-000XX-3-SS-18RS8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-18RS8

Cv value: 1.8000

Pressure: 5000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

RCM-000XX-3-SS-6NBSW8T-G

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-6NBSW8T-G

Cv value: 0.8600

Pressure: 6000 psi

Connection: ½ in. Socket weld

Line Size: 0.5"

More Info

Product Number:

RCM-000XX-3-SS-3NRS4

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-3NRS4

Cv value: 0.3500

Pressure: 6000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

RCM-000XX-3-NVT4H1VM60

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: NVT4H1VM60

Cv value: 0.0800

Pressure: 60000 psi

Connection: ¼ in. Coned-and-threaded

Line Size: 0.25"

More Info

Product Number:

RCM-000XX-3-NBD7-FNS4-7R

Valve Type: Needle valve

Valve Manufacturer: Fitok

Valve Partnumber: NBD7-FNS4-7R

Cv value: 0.3500

Pressure: 6000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

RCM-000XX-3-RSN2-02-3-VVP-NV

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: RSN2-02-3-VVP-NV

Cv value: 0.0500

Pressure: 1015 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

RCJ-000XX-3-1335G4Y

Valve Type: Metering valve

Valve Manufacturer: Hoke

Valve Partnumber: 1335G4Y

Cv value: 0.0100

Pressure: 5000 psi

Connection: ¼ in. Gyrolok

Line Size: 0.25"

More Info

Product Number:

RCM-000XX-3-20-11LF4-HYD

Valve Type: Hydrogen valve

Valve Manufacturer: HIP

Valve Partnumber: 20-11LF4-HYD

Cv value: 0.1700

Pressure: 20000 psi

Connection: ¼ in. LF4

Line Size: 0.25"

More Info

Product Number:

RCL-000XX-3-4M-V4LN-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 4M-V4LN-SS

Cv value: 0.4300

Pressure: 5000 psi

Connection: ¼ in. NPT

Line Size: 0.25"

More Info

Product Number:

RCM-000XX-3-20-11LF12

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-11LF12

Cv value: 2.2900

Pressure: 20000 psi

Connection: ¾ in. Compression

Line Size: 0.75"

More Info

Product Number:

RCM-000XX-3-SS-12NBS12

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NBS12

Cv value: 2.4000

Pressure: 6000 psi

Connection: ¾ in. Compression

Line Size: 0.75"

More Info

Product Number:

RCM-000XX-3-SS-12NRF12

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NRF12

Cv value: 2.4000

Pressure: 6000 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

RCL-000XX-3-SFPMV46V

Valve Type: Needle valve

Valve Manufacturer: BuTech

Valve Partnumber: SFPMV46V

Cv value: 1.1250

Pressure: 15000 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

RCM-000XX-3-SV30276TE006

Valve Type: Gate valve

Valve Manufacturer: Sharpe

Valve Partnumber: SV30276TE006

Cv value: 5.0000

Pressure: 200 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

RCM-000XX-3-D200

Valve Type: Cylinder valve

Valve Manufacturer: Rotarex

Valve Partnumber: D200

Cv value: 0.3500

Pressure: 3000 psi

Connection: ¾ in. NGT inlet

Line Size: 0.75"

More Info

Product Number:

RCM-000XX-3-21V6M071

Valve Type: High pressure valve

Valve Manufacturer: Maximator

Valve Partnumber: 21V6M071

Cv value: 0.7500

Pressure: 22500 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

RCM-000XX-3-NUSS-FL6-8B-G

Valve Type: Needle valve

Valve Manufacturer: Fitok

Valve Partnumber: NUSS-FL6-8B-G

Cv value: 0.8000

Pressure: 6000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

RCM-000XX-3-20SM6071-HYG

Valve Type: Hydrogen valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM6071-HYG

Cv value: 1.3000

Pressure: 20000 psi

Connection: ⅜ in. SF375CX20

Line Size: 0.375"

More Info

Product Number:

RCH-000XX-3-20SM9071-LT

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM9071-LT

Cv value: 1.3000

Pressure: 20000 psi

Connection: ⅜ in. SF562CX20

Line Size: 0.375"

More Info

Product Number:

RCM-000XX-3-SS-12NRS16-G

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NRS16-G

Cv value: 2.4000

Pressure: 10000 psi

Connection: 1 in. Compression

Line Size: 1"

More Info

Product Number:

RCH-000XX-3-G5002-103-31002

Valve Type: Plug valve

Valve Manufacturer: Merla

Valve Partnumber: G5002-103-31002

Cv value: 7.7000

Pressure: 5000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

RCM-000XX-3-16F-U16LR-T-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 16F-U16LR-T-SS

Cv value: 1.8200

Pressure: 5000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

RCM-000XX-3-12NBSW16T

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NBSW16T

Cv value: 2.2000

Pressure: 10000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

RCM-000XX-3-N1558

Valve Type: Angle needle valve

Valve Manufacturer: Kerotest

Valve Partnumber: N1558

Cv value: 6.2000

Pressure: 10000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

RCF-000XX-3-552816A

Valve Type: 3-Way valve

Valve Manufacturer: Valworx

Valve Partnumber: 552816A

Cv value: 82.0000

Pressure: 1000 psi

Connection: 2 in. FNPT

Line Size: 2"

More Info

Product Number:

RCH-000XX-3-TMBV300VT-PV-A

Valve Type: 3-way valve

Valve Manufacturer: Plast-O-Matic

Valve Partnumber: TMBV300VT-PV-A

Cv value: 132.0000

Pressure: 100 psi

Connection: 3 in. Threaded

Line Size: 3"

More Info

Product Number:

RCM-000XX-3-30VM9882-LT

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 30VM9882-LT

Cv value: 0.3300

Pressure: 30000 psi

Connection: 9/16 in. F562C

Line Size: 0.5625"

More Info

Product Number:

RCH-000XX-3-20SM9072-LT

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM9072-LT

Cv value: 1.3000

Pressure: 20000 psi

Connection: 9/16 in. SF562CX20

Line Size: 0.5625"

More Info

Product Number:

RCM-000XX-3-20SM9083

Valve Type: 3-way valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM9083

Cv value: 1.3000

Pressure: 20000 psi

Connection: 9/16 in. SF562CX20

Line Size: 0.5625"

More Info

Product Number:

RCH-000XX-3-20SM9081-LT

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM9081-LT

Cv value: 1.3000

Pressure: 20000 psi

Connection: 9/16; in. SF562CX20

Line Size: 0.375"

More Info

Product Number:

RCH-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

RCM-000XX-0-Actuator Only

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

RCM-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

RCM-000XX-1-Gas Bottle Mounting Kit

Valve Type: Gas bottle valve

Valve Manufacturer: N/A

Valve Partnumber: Gas Bottle Mounting Kit

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

Specifications

Ex-proof Rating Class I, Div 1 Groups B, C, D / T6
Class II Groups E, F, G / T6 (85 °C)
IECEx & CSA certification

Voltages/Current 12-24 VDC, max 3 A @ 24 VDC
110-240 VAC, max 1.5 A @ 240 VAC

Control Options Analog (4-20 mA, 1-5 V, 1-10 V) , Modbus RS485, TTL

Feedback 4-20 mA



Output Torque Range 4 – 915 in-lbs

Output Speed Range 1 – 186 seconds per turn

Positioning Precision +/- 0.25°



Add-On Options Manual override
Battery backup for fail-safe operation
110-240 VAC power option

External temp. range -40 – 65 °C (Heater option)

Life Expectancy 250,000 cycles in specified conditions

Motor Brushless DC motor, computer control

Enclosure Aluminum or stainless steel (NEMA 4 / IP56)

Range/Speed Setting Adjustable by DIP switches inside enclosure

Power Setting Adjustable by DIP switches inside enclosure

End Travel Detection For needle valves, by motion detection



HazLoc Multi-Turn Actuators Spec Sheet

User Manuals

RCx 4-20 mA
(RCJ, RCL, RCM, RCH, and RCF)


Multi-turn actuators housed in HazLoc enclosures, with 4-20 mA control signal with/without feedback and isolated input
Download



Rxx Modbus
(RCJ, RCL, RCM, RCH, RCF, RDM, RDH, and RDF)


Variable or discrete position actuators housed in HazLoc enclosures, with Modbus RS485 protocol.
Download



RCx 110VAC Power
(RCJ-AC, RCL-AC, RCM-AC, RCH-AC, and RCF-AC)


110 VAC operated multi-turn actuators housed in HazLoc enclosures, with 4-20 mA control signal with/without feedback and isolated input.
Download



RCx 110 VAC Power Battery Backup
(RCJ-AC-B, RCL-AC-B, RCM-AC-B, RCH-AC-B, and RCF-AC-B)


110 VAC operated multi-turn actuators with battery backup fail-safe housed in HazLoc enclosures, with 4-20 mA control signal with/without feedback and isolated input.
Download



R-Series Part Number Guide

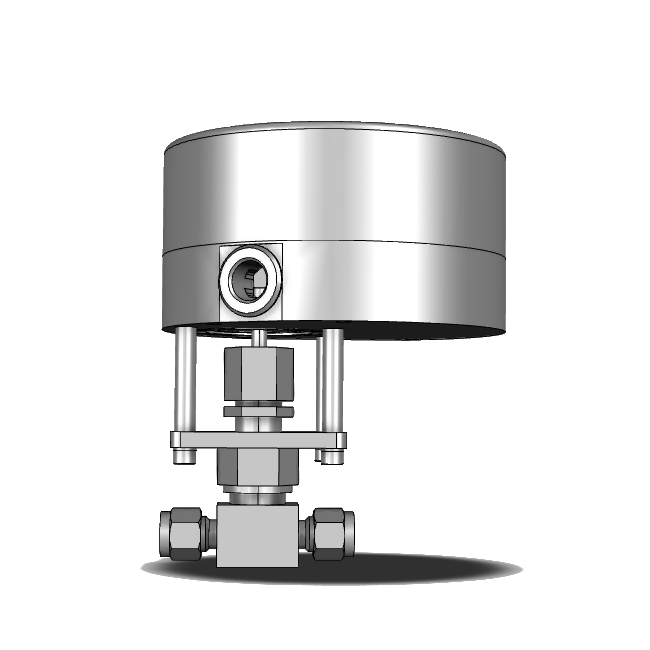

3D Drawings

Scroll our list of downloadable 3D files. Please do not hesitate to contact us if you are unable to find your desired CAD drawing or need custom files. You can use any 3D software to view the .STEP files.
