Valve Type

Line Size

Connection

Pressure (psi)

Cv

More Info

Product Number:

MCM-000XX-3-NFSS-FNS8-9R-Y

Valve Type: Needle valve

Valve Manufacturer: Fitok

Valve Partnumber: NFSS-FNS8-9R-Y

Cv value: 0.8500

Pressure: 6000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-N800S

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: N800S

Cv value: 0.7870

Pressure: 5000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-8F-V12LN-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 8F-V12LN-SS

Cv value: 1.0500

Pressure: 5000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-NGSS-FL8-9R-YL

Valve Type: Needle valve

Valve Manufacturer: Fitok

Valve Partnumber: NGSS-FL8-9R-YL

Cv value: 1.8000

Pressure: 3000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCJ-000XX-3-SS-8BW-V47

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-8BW-V47

Cv value: 1.1000

Pressure: 1000 psi

Connection: ½ in. Butt welded

Line Size: 0.5"

More Info

Product Number:

MCJ-000XX-3-SS-8BG-V47

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-8BG-V47

Cv value: 1.2000

Pressure: 1000 psi

Connection: ½ in. Butt welded

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-SS-1RS8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1RS8

Cv value: 0.7300

Pressure: 5000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-SS-8BG

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-8BG

Cv value: 1.2000

Pressure: 1000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SS-18RS8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-18RS8

Cv value: 1.8000

Pressure: 5000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-8Z-V6LN-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 8Z-V6LN-SS

Cv value: 0.5500

Pressure: 5000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SS-6NRS8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-6NRS8

Cv value: 0.8600

Pressure: 6000 psi

Connection: ½ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCJ-000XX-3-SS-8BW

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-8BW

Cv value: 1.1000

Pressure: 1000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SS-12NBS8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NBS8

Cv value: 2.1000

Pressure: 6000 psi

Connection: ½ in. Compression

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SS-6HNRS8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-6HNRS8

Cv value: 0.7800

Pressure: 10000 psi

Connection: ½ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-MV800S

Valve Type: Metering valve

Valve Manufacturer: Parker

Valve Partnumber: MV800S

Cv value: 1.9300

Pressure: 5000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-KPF-Series

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: KPF-Series

Cv value: 1.0000

Pressure: 6000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SS-8GUF8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-8GUF8

Cv value: 1.2000

Pressure: 6000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-1933TT-SE-050-BAV90

Valve Type: Ball valve

Valve Manufacturer: AVCO

Valve Partnumber: 1933TT-SE-050-BAV90

Cv value: 19.0400

Pressure: 2000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-15F-12NFD

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 15F-12NFD

Cv value: 1.6800

Pressure: 15000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-HRPV4S8FF

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: HRPV4S8FF

Cv value: 1.8000

Pressure: 10000 psi

Connection: ½ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SIHLC9X-G-Z-02-Z

Valve Type: Sanitary valve

Valve Manufacturer: PBM

Valve Partnumber: SIHLC9X-G-Z-02-Z

Cv value: 8.0000

Pressure: 900 psi

Connection: ½ in. Hygienic clamp

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-SS-18RF8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-18RF8

Cv value: 1.8000

Pressure: 5000 psi

Connection: ½ in. NPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-40276-050

Valve Type: Globe valve

Valve Manufacturer: Sharpe

Valve Partnumber: 40276-050

Cv value: 3.0000

Pressure: 200 psi

Connection: ½ in. NPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SS-12NRF8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NRF8

Cv value: 2.4000

Pressure: 6000 psi

Connection: ½ in. NPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SS-12NBF8

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NBF8

Cv value: 2.4000

Pressure: 6000 psi

Connection: ½ in. NPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-SV30276TE004

Valve Type: Gate valve

Valve Manufacturer: Sharpe

Valve Partnumber: SV30276TE004

Cv value: 17.6000

Pressure: 200 psi

Connection: ½ in. NPT

Line Size: 0.5"

More Info

Product Number:

MCL-L1-000XX-3-708MV-050

Valve Type: Needle valve

Valve Manufacturer: LOWFLOW

Valve Partnumber: 708MV-050

Cv value: 0.5000

Pressure: 5000 psi

Connection: ½ in. NPT-threaded

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-PFA-4RPS8

Valve Type: PFA valve

Valve Manufacturer: Swagelok

Valve Partnumber: PFA-4RPS8

Cv value: 1.3900

Pressure: 180 psi

Connection: ½ in. PFA tube fittings

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-30-12HF4-R

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 30-12HF4-R

Cv value: 0.1350

Pressure: 30000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-20-12LF4-R

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-12LF4-R

Cv value: 0.2550

Pressure: 20000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-60-11HF4-V

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 60-11HF4-V

Cv value: 0.0400

Pressure: 60000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-30-11HF4-REG

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 30-11HF4-REG

Cv value: 0.0900

Pressure: 30000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-NFSS-FNS4-8R-Y

Valve Type: Needle valve

Valve Manufacturer: Fitok

Valve Partnumber: NFSS-FNS4-8R-Y

Cv value: 0.8500

Pressure: 6000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-20-11LF4-HYD

Valve Type: Hydrogen valve

Valve Manufacturer: HIP

Valve Partnumber: 20-11LF4-HYD

Cv value: 0.1700

Pressure: 20000 psi

Connection: ¼ in. LF4

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-30UV41R

Valve Type: High pressure valve

Valve Manufacturer: BuTech

Valve Partnumber: 30UV41R

Cv value: 0.1200

Pressure: 30000 psi

Connection: ¼ in. Tube

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-4Z-V2LN-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 4Z-V2LN-SS

Cv value: 0.1200

Pressure: 5000 psi

Connection: ¼ Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-4Z-V4LN-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 4Z-V4LN-SS

Cv value: 0.4300

Pressure: 5000 psi

Connection: ¼ Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-65V4H882

Valve Type: High pressure valve

Valve Manufacturer: Maximator

Valve Partnumber: 65V4H882

Cv value: 0.1200

Pressure: 65000 psi

Connection: ¼ compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-4A-NP6AK-SSP-8

Valve Type: Angle needle valve

Valve Manufacturer: Parker

Valve Partnumber: 4A-NP6AK-SSP-8

Cv value: 0.5100

Pressure: 6000 psi

Connection: ¼ Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-65V4H071

Valve Type: High pressure valve

Valve Manufacturer: Maximator

Valve Partnumber: 65V4H071

Cv value: 0.0800

Pressure: 65000 psi

Connection: ¼ Coned-and-threaded

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-4F-V6LN-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 4F-V6LN-SS

Cv value: 0.5500

Pressure: 5000 psi

Connection: ¼ FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-SS-410-FP

Valve Type: High pressure valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-410-FP

Cv value: 0.1200

Pressure: 45000 psi

Connection: ¼ FNPT

Line Size: 0.25"

More Info

Product Number:

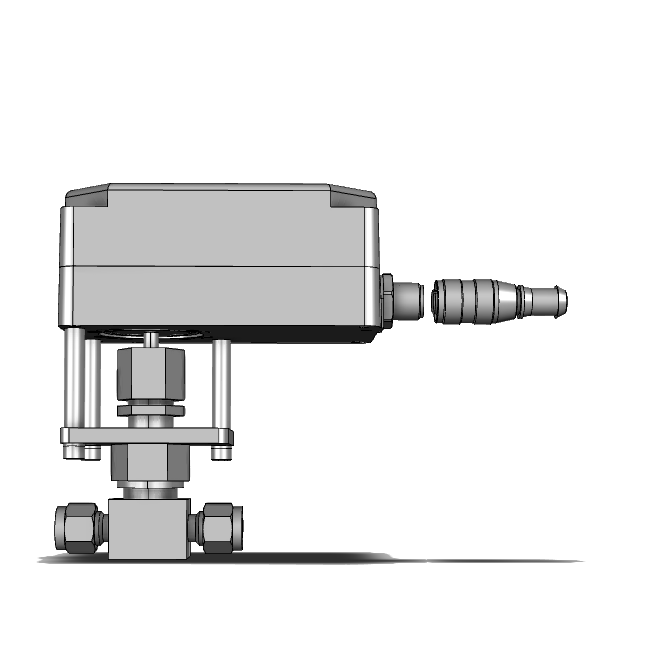

MCL-000XX-3-SS-31RS4

Valve Type: Metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-31RS4

Cv value: 0.0400

Pressure: 5000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-4MG

Valve Type: Metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4MG

Cv value: 0.0300

Pressure: 1000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-1RS4

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1RS4

Cv value: 0.3700

Pressure: 5000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-4BG

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4BG

Cv value: 0.3600

Pressure: 1000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-KFB-Series

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: KFB series

Cv value: 1.0000

Pressure: 250 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCJ-000XX-3-SS-SS4

Valve Type: Metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-SS4

Cv value: 0.0040

Pressure: 2000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-1KS4-SC11

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1KS4-SC11

Cv value: 0.3700

Pressure: 5000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-4BRG

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4BRG

Cv value: 0.3600

Pressure: 1000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-4BW

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4BW

Cv value: 0.3300

Pressure: 1000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-SS-3NRS4

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-3NRS4

Cv value: 0.3500

Pressure: 6000 psi

Connection: ¼ in. Compression

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-SS-4L

Valve Type: Metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4L

Cv value: 0.1500

Pressure: 1000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-4L2

Valve Type: Metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4L2

Cv value: 0.1500

Pressure: 1000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-20VS4

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-20VS4

Cv value: 0.2100

Pressure: 6000 psi

Connection: ¼ in. Compression

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-NVT4M1VA20

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: NVT4M1VA20

Cv value: 0.2800

Pressure: 20000 psi

Connection: ¼ in. Coned-and-threaded

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-60VM4882

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 60VM4882

Cv value: 0.0800

Pressure: 60000 psi

Connection: ¼ in. F250C

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-1RF4

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1RF4

Cv value: 0.7300

Pressure: 5000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-KPR-Series

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: KPR-Series

Cv value: 0.5000

Pressure: 6000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-10-11NFB-V

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 10-11NFB-V

Cv value: 0.1500

Pressure: 10000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-KHB-Series

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: KHB series

Cv value: 0.0600

Pressure: 6000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-CC-A16A41DVV

Valve Type: Metering valve

Valve Manufacturer: Tescom

Valve Partnumber: CC-A16A41DVV

Cv value: 0.0000

Pressure: 10000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-SS-20KF4

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-20KF4

Cv value: 0.0900

Pressure: 6000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-BSHN2-02-6VVP

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: BSHN2-02-6VVP

Cv value: 0.1000

Pressure: 10000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-KPP-Series

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: KPP-Series

Cv value: 0.0200

Pressure: 4000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCL-L1-000XX-3-SFPV41V

Valve Type: High pressure valve

Valve Manufacturer: BuTech

Valve Partnumber: SFPV41V

Cv value: 0.7500

Pressure: 15000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-KPB-Series

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: KPB-Series

Cv value: 0.2000

Pressure: 4000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-NBSS-FNS4-7R

Valve Type: Metering valve

Valve Manufacturer: Fitok

Valve Partnumber: NBSS-FNS4-7R

Cv value: 0.3500

Pressure: 6000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-44-1126-24

Valve Type: Pressure regulator

Valve Manufacturer: Tescom

Valve Partnumber: 44-1126-24

Cv value: 0.6000

Pressure: 6000 psi

Connection: ¼ in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-808Y053

Valve Type: Cryogenic valve

Valve Manufacturer: Dragon

Valve Partnumber: 808Y053

Cv value: 0.4000

Pressure: 10000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-KHP1WXA4C2S50000

Valve Type: Pressure regulator

Valve Manufacturer: Swagelok

Valve Partnumber: KHP1WXA4C2S50000

Cv value: 0.0600

Pressure: 10000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-1933TT-SE-025-BAV15

Valve Type: Ball valve

Valve Manufacturer: AVCO

Valve Partnumber: 1933TT-SE-025-BAV15

Cv value: 1.2300

Pressure: 2000 psi

Connection: ¼ in. FNPT

Line Size: 0.25"

More Info

Product Number:

MCJ-000XX-3-1335G4Y

Valve Type: Metering valve

Valve Manufacturer: Hoke

Valve Partnumber: 1335G4Y

Cv value: 0.0100

Pressure: 5000 psi

Connection: ¼ in. Gyrolok

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-1315G4Y

Valve Type: Metering valve

Valve Manufacturer: Hoke

Valve Partnumber: 1315G4Y

Cv value: 0.0240

Pressure: 5000 psi

Connection: ¼ in. Gyrolok

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-2315G4Y

Valve Type: Metering valve

Valve Manufacturer: Hoke

Valve Partnumber: 2315G4Y

Cv value: 0.0860

Pressure: 3000 psi

Connection: ¼ in. Gyrolok

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-1656G4YA

Valve Type: Metering valve

Valve Manufacturer: Hoke

Valve Partnumber: 1656G4YA

Cv value: 0.0008

Pressure: 5000 psi

Connection: ¼ in. Gyrolok

Line Size: 0.25"

More Info

Product Number:

MCJ-000XX-3-1325G4Y

Valve Type: Metering valve

Valve Manufacturer: Hoke

Valve Partnumber: 1325G4Y

Cv value: 0.0240

Pressure: 5000 psi

Connection: ¼ in. Gyrolok

Line Size: 0.25"

More Info

Product Number:

MCJ-000XX-3-1345G4Y

Valve Type: Metering valve

Valve Manufacturer: Hoke

Valve Partnumber: 1345G4Y

Cv value: 0.0100

Pressure: 5000 psi

Connection: ¼ in. Gyrolok

Line Size: 0.125"

More Info

Product Number:

MCL-000XX-3-SS-1RM4

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1RM4

Cv value: 0.3700

Pressure: 5000 psi

Connection: ¼ in. MNPT

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-B-4L2

Valve Type: Metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: B-4L2

Cv value: 0.1500

Pressure: 1000 psi

Connection: ¼ in. MNPT

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-4M-NLL-V-SS-K

Valve Type: Metering valve

Valve Manufacturer: Parker

Valve Partnumber: 4M-NLL-V-SS-K

Cv value: 0.2070

Pressure: 1000 psi

Connection: ¼ in. NPT

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-4M4Z-V4AN-SS

Valve Type: Angle needle valve

Valve Manufacturer: Parker

Valve Partnumber: 4M4Z-V4AN-SS

Cv value: 0.5500

Pressure: 5000 psi

Connection: ¼ in. NPT

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-PFA-4RPS4

Valve Type: PFA valve

Valve Manufacturer: Swagelok

Valve Partnumber: PFA-4RPS4

Cv value: 0.3800

Pressure: 180 psi

Connection: ¼ in. PFA tube fittings

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-20SM4081

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM4081

Cv value: 0.3100

Pressure: 20000 psi

Connection: ¼ in. SF250CX20

Line Size: 0.25"

More Info

Product Number:

MCM-000XX-3-60UV41R

Valve Type: High pressure valve

Valve Manufacturer: BuTech

Valve Partnumber: 60UV41R

Cv value: 0.0800

Pressure: 60000 psi

Connection: ¼ in. Tube

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-4BMW-VCR

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4BMW-VCR

Cv value: 0.0190

Pressure: 700 psi

Connection: ¼ in. VCR

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-4BMG-VCR

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4BMG-VCR

Cv value: 0.0190

Pressure: 700 psi

Connection: ¼ in. VCR

Line Size: 0.25"

More Info

Product Number:

MCJ-000XX-3-6LV-BNCV333

Valve Type: 3-way valve

Valve Manufacturer: Swagelok

Valve Partnumber: 6LV-BNCV333

Cv value: 0.3000

Pressure: 500 psi

Connection: ¼ in. VCR

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-SS-4BMG

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-4BMG

Cv value: 0.0190

Pressure: 700 psi

Connection: ¼ in. VCR

Line Size: 0.25"

More Info

Product Number:

MCL-000XX-3-SS-ORS2

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-ORS2

Cv value: 0.0900

Pressure: 5000 psi

Connection: ⅛ in. Compression

Line Size: 0.125"

More Info

Product Number:

MCL-000XX-3-2Z-H1L-V-SS-K

Valve Type: Metering valve

Valve Manufacturer: Parker

Valve Partnumber: 2Z-H1L-V-SS-K

Cv value: 0.0040

Pressure: 250 psi

Connection: ⅛ in. Compression

Line Size: 0.125"

More Info

Product Number:

MCL-000XX-3-SS-1RF2

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1RF2

Cv value: 0.3700

Pressure: 6000 psi

Connection: ⅛ in. Compression

Line Size: 0.125"

More Info

Product Number:

MCJ-000XX-3-SS-2MG4

Valve Type: Metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-2MG4

Cv value: 0.0300

Pressure: 1000 psi

Connection: ⅛ in. FNPT

Line Size: 0.125"

More Info

Product Number:

MCL-000XX-3-SS-ORF2

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-ORF2

Cv value: 0.0900

Pressure: 5000 psi

Connection: ⅛ in. FNPT

Line Size: 0.125"

More Info

Product Number:

MCL-000XX-3-2F-V2AN-SS

Valve Type: Angle needle valve

Valve Manufacturer: Parker

Valve Partnumber: 2F-V2AN-SS

Cv value: 0.1200

Pressure: 5000 psi

Connection: ⅛ in. FNPT

Line Size: 0.125"

More Info

Product Number:

MCJ-000XX-3-1325G2Y

Valve Type: Metering valve

Valve Manufacturer: Hoke

Valve Partnumber: 1325G2Y

Cv value: 0.0240

Pressure: 5000 psi

Connection: ⅛ in. Gyrolok

Line Size: 0.125"

More Info

Product Number:

MCL-000XX-3-SFPMMV26V

Valve Type: Micro-metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: SFPMMV26V

Cv value: 0.6500

Pressure: 15000 psi

Connection: ⅛ in. NPT

Line Size: 0.125"

More Info

Product Number:

MCL-000XX-3-10V2071

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 10V2071

Cv value: 0.1200

Pressure: 15000 psi

Connection: ⅛ in. W125

Line Size: 0.125"

More Info

Product Number:

MCM-000XX-3-20-11LF12

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-11LF12

Cv value: 2.2900

Pressure: 20000 psi

Connection: ¾ in. Compression

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-20-11LF12-20LM126

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-11LF12-20LM126

Cv value: 2.2900

Pressure: 20000 psi

Connection: ¾ in. Compression

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-20-11LF12-HT-REG

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-11LF12-HT-REG

Cv value: 2.2900

Pressure: 20000 psi

Connection: ¾ in. Coned-and-threaded

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-SS-18RS12

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-18RS12

Cv value: 1.8000

Pressure: 5000 psi

Connection: ¾ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-SS-12NRS12

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NRS12

Cv value: 2.4000

Pressure: 10000 psi

Connection: ¾ in. compression

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-40276-075

Valve Type: Globe valve

Valve Manufacturer: Sharpe

Valve Partnumber: 40276-075

Cv value: 5.0000

Pressure: 200 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-NFSS-FNS12-6R-Y

Valve Type: Needle valve

Valve Manufacturer: Fitok

Valve Partnumber: NFSS-FNS12-6R-Y

Cv value: 3.2700

Pressure: 6000 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-1933TT-SE-075-BAV90

Valve Type: Ball valve

Valve Manufacturer: AVCO

Valve Partnumber: 1933TT-SE-075-BAV90

Cv value: 32.0700

Pressure: 5000 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-SV30276TE006

Valve Type: Gate valve

Valve Manufacturer: Sharpe

Valve Partnumber: SV30276TE006

Cv value: 5.0000

Pressure: 200 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-10F-11NFF

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 10F-11NFF

Cv value: 5.9100

Pressure: 10000 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-1913TT-SE-075-BAV60

Valve Type: Ball valve

Valve Manufacturer: AVCO

Valve Partnumber: 1913TT-SE-075-BAV60

Cv value: 12.7400

Pressure: 2000 psi

Connection: ¾ in. FNPT

Line Size: 0.75"

More Info

Product Number:

MCM-000XX-3-SS-12NBF12

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NBF12

Cv value: 2.4000

Pressure: 6000 psi

Connection: ¾ in. NPT

Line Size: 0.75"

More Info

Product Number:

MCL-000XX-3-SLPV61V

Valve Type: Needle valve

Valve Manufacturer: BuTech

Valve Partnumber: SLPV61V

Cv value: 0.2000

Pressure: 7500 psi

Connection: ⅜ in SL/P

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-SS-6L

Valve Type: Metering valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-6L

Cv value: 0.1600

Pressure: 1000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-SS-1RS6

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1RS6

Cv value: 0.7300

Pressure: 5000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-SS-6BG

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-6BG

Cv value: 1.2000

Pressure: 1000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-SS-6BK

Valve Type: Bellows valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-6BK

Cv value: 1.0000

Pressure: 1000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-SS-1VS6

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-1VS6

Cv value: 0.7300

Pressure: 5000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-SS-26VS6

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-26VS6

Cv value: 0.7300

Pressure: 6000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-20-12LF6-R

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-12LF6-R

Cv value: 0.6750

Pressure: 20000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-6Z-U12LB-G-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 6Z-U12LB-G-SS

Cv value: 0.7700

Pressure: 6000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-20NV6M1V

Valve Type: High pressure valve

Valve Manufacturer: PHP

Valve Partnumber: 20NV6M1V

Cv value: 0.0750

Pressure: 20000 psi

Connection: ⅜ in. Compression

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-SS-6NBF6

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-6NBF6

Cv value: 0.8600

Pressure: 6000 psi

Connection: ⅜ in. FNPT

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-10V6071

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 10V6071

Cv value: 0.2000

Pressure: 15000 psi

Connection: ⅜ in. FNPT

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-SS-6NRF6

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-6NRF6

Cv value: 0.8600

Pressure: 6000 psi

Connection: ⅜ in. FNPT

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-6F-V8LR-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 6F-V8LR-SS

Cv value: 1.2300

Pressure: 5000 psi

Connection: ⅜ in. FNPT

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-15P6081-PM

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 15P6081-PM

Cv value: 0.7500

Pressure: 15000 psi

Connection: ⅜ in. FNPT

Line Size: 0.375"

More Info

Product Number:

MCL-000XX-3-MV-13-163

Valve Type: PFA valve

Valve Manufacturer: Parker

Valve Partnumber: MV-13-163

Cv value: 0.5300

Pressure: 100 psi

Connection: ⅜ in. Pargrip

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-20SM6071-HYG

Valve Type: Hydrogen valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM6071-HYG

Cv value: 1.3000

Pressure: 20000 psi

Connection: ⅜ in. SF375CX20

Line Size: 0.375"

More Info

Product Number:

MCM-000XX-3-40276-150

Valve Type: Globe valve

Valve Manufacturer: Sharpe

Valve Partnumber: 40276-150

Cv value: 10.0000

Pressure: 200 psi

Connection: 1 ½ in. FNPT

Line Size: 1.5"

More Info

Product Number:

MCM-000XX-3-40276-125

Valve Type: Globe valve

Valve Manufacturer: Sharpe

Valve Partnumber: 40276-125

Cv value: 10.0000

Pressure: 200 psi

Connection: 1 ¼ in. NPT

Line Size: 1.25"

More Info

Product Number:

MCM-000XX-3-SS-12NBF16

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NBF16

Cv value: 2.4000

Pressure: 6000 psi

Connection: 1 in. Compression

Line Size: 1"

More Info

Product Number:

MCM-000XX-3-SS-12NBS16

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NBS16

Cv value: 2.4000

Pressure: 6000 psi

Connection: 1 in. Compression

Line Size: 1"

More Info

Product Number:

MCH-000XX-3-20-11LF16-HT-REG

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-11LF16-HT-REG

Cv value: 3.8600

Pressure: 20000 psi

Connection: 1 in. Coned-and-threaded

Line Size: 1"

More Info

Product Number:

MCM-000XX-3-40276-100

Valve Type: Globe valve

Valve Manufacturer: Sharpe

Valve Partnumber: 40276-100

Cv value: 6.5000

Pressure: 200 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

MCH-000XX-3-20SM16071

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM16071

Cv value: 5.2000

Pressure: 20000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

MCM-000XX-3-NBSS-FNS16-OR-Y

Valve Type: Needle valve

Valve Manufacturer: Fitok

Valve Partnumber: NBSS-FNS16-OR-Y

Cv value: 5.6500

Pressure: 6000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

MCM-000XX-3-NFSS-FNS16-OR-Y

Valve Type: Needle valve

Valve Manufacturer: Fitok

Valve Partnumber: NFSS-FNS16-OR-Y

Cv value: 5.6500

Pressure: 6000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

MCL-L1-000XX-3-SS-12NBF16

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: SS-12NBF16

Cv value: 2.4000

Pressure: 6000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

MCH-000XX-3-N1358

Valve Type: Angle needle valve

Valve Manufacturer: Kerotest

Valve Partnumber: N1358

Cv value: 6.2000

Pressure: 10000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

MCM-000XX-3-N1600S-V

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: N1600S-V

Cv value: 5.2500

Pressure: 3000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

MCM-000XX-3-N1518

Valve Type: Needle valve

Valve Manufacturer: Kerotest

Valve Partnumber: N1518

Cv value: 3.5000

Pressure: 10000 psi

Connection: 1 in. FNPT

Line Size: 1"

More Info

Product Number:

MCL-000XX-3-B2594-01

Valve Type: Micro-metering valve

Valve Manufacturer: BuTech

Valve Partnumber: B2594-01

Cv value: 0.0290

Pressure: 15000 psi

Connection: 1/16" SL/P

Line Size: 0.0625"

More Info

Product Number:

MCM-000XX-3-8A-U12LR-T-SS

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 8A-U12LR-T-SS

Cv value: 0.9400

Pressure: 6000 psi

Connection: 1/2 in. Compression

Line Size: 0.5"

More Info

Product Number:

MCL-000XX-3-808Y057

Valve Type: Cryogenic valve

Valve Manufacturer: Dragon

Valve Partnumber: 808Y057

Cv value: 1.0000

Pressure: 10000 psi

Connection: 1/2 in. FNPT

Line Size: 0.5"

More Info

Product Number:

MCM-000XX-3-M12A-V8LN-SS-C3

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: M12A-V8LN-SS-C3

Cv value: 0.9700

Pressure: 5000 psi

Connection: 12mm Compression

Line Size: 0"

More Info

Product Number:

MCF-000XX-1-SIHLH9X-G-W-02

Valve Type: Sanitary valve

Valve Manufacturer: PBM

Valve Partnumber: SIHLH9X-G-W-02

Cv value: 10.0000

Pressure: 900 psi

Connection: 2 in. Clamp

Line Size: 2"

More Info

Product Number:

MCM-000XX-3-40276-200

Valve Type: Globe valve

Valve Manufacturer: Sharpe

Valve Partnumber: 40276-200

Cv value: 10.0000

Pressure: 200 psi

Connection: 2 in. FNPT

Line Size: 2"

More Info

Product Number:

MCH-000XX-3-1933TT-SE-200-BAV30

Valve Type: Ball valve

Valve Manufacturer: AVCO

Valve Partnumber: 1933TT-SE-200-BAV30

Cv value: 30.4300

Pressure: 2000 psi

Connection: 2 in. FNPT

Line Size: 2"

More Info

Product Number:

MCH-000XX-3-BF-03-121-15-M23

Valve Type: Butterfly valve

Valve Manufacturer: Watts

Valve Partnumber: BF-03-121-15-M23

Cv value: 302.0000

Pressure: 300 psi

Connection: 3 in. Lug

Line Size: 3"

More Info

Product Number:

MCL-G-000XX-3-400CSF11

Valve Type: Gate valve

Valve Manufacturer: SVF

Valve Partnumber: 400CSF11

Cv value: 10.0000

Pressure: 285 psi

Connection: 4 in. Flanged

Line Size: 4"

More Info

Product Number:

MCM-000XX-3-65V9H882

Valve Type: High pressure valve

Valve Manufacturer: Maximator

Valve Partnumber: 65V9H882

Cv value: 0.2100

Pressure: 65000 psi

Connection: 9/16 in Compression

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-20-12LF9-R

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-12LF9-R

Cv value: 1.6800

Pressure: 20000 psi

Connection: 9/16 in. Compression

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-60-12HF9R

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 60-12HF9R

Cv value: 0.6000

Pressure: 60000 psi

Connection: 9/16 in. Compression

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-30-11HF9

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 30-11HF9

Cv value: 0.8000

Pressure: 30000 psi

Connection: 9/16 in. Coned-and-threaded

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-20-11LF9-REG

Valve Type: High pressure valve

Valve Manufacturer: HIP

Valve Partnumber: 20-11LF9-REG

Cv value: 1.1200

Pressure: 20000 psi

Connection: 9/16 in. Coned-and-threaded

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-20SM9071

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM9071

Cv value: 1.3000

Pressure: 20000 psi

Connection: 9/16 in. Coned-and-threaded

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-30VM9071

Valve Type: Needle valve

Valve Manufacturer: Parker

Valve Partnumber: 30VM9071

Cv value: 0.3300

Pressure: 30000 psi

Connection: 9/16 in. Coned-and-threaded

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-NVT9M1RB20

Valve Type: Needle valve

Valve Manufacturer: Swagelok

Valve Partnumber: NVT9M1RB20

Cv value: 1.7500

Pressure: 20000 psi

Connection: 9/16 in. Coned-and-threaded

Line Size: 0.5625"

More Info

Product Number:

MCH-000XX-3-40VM9882

Valve Type: Angle needle valve

Valve Manufacturer: Parker

Valve Partnumber: 40VM9882

Cv value: 0.2800

Pressure: 40000 psi

Connection: 9/16 in. F562C40

Line Size: 0.5625"

More Info

Product Number:

MCH-000XX-3-20SM9072-LT

Valve Type: High pressure valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM9072-LT

Cv value: 1.3000

Pressure: 20000 psi

Connection: 9/16 in. FNPT

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-20NV9M1V

Valve Type: High pressure valve

Valve Manufacturer: PHP

Valve Partnumber: 20NV9M1V

Cv value: 1.3000

Pressure: 20000 psi

Connection: 9/16 in. MP Coned-and-threaded

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-20SM9882

Valve Type: Angle needle valve

Valve Manufacturer: Parker

Valve Partnumber: 20SM9882

Cv value: 1.3000

Pressure: 20000 psi

Connection: 9/16 in. SF562CX20

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-30UV91V

Valve Type: High pressure valve

Valve Manufacturer: BuTech

Valve Partnumber: 30UV91V

Cv value: 0.3300

Pressure: 30000 psi

Connection: 9/16 in. Tube

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-30UV91R

Valve Type: High pressure valve

Valve Manufacturer: BuTech

Valve Partnumber: 30UV91R

Cv value: 0.3300

Pressure: 30000 psi

Connection: 9/16 in. Tube

Line Size: 0.5625"

More Info

Product Number:

MCM-000XX-3-60UV91R

Valve Type: High pressure valve

Valve Manufacturer: BuTech

Valve Partnumber: 60UV91R

Cv value: 0.1400

Pressure: 60000 psi

Connection: 9/16 in. Tube

Line Size: 0.5625"

More Info

Product Number:

MCL-000XX-0-Actuator-only

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

MCM-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

MCH-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

MCL-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

MCM-000XX-0-Actuator-only

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

MCM-HT-000XX-1-Including-mounting-kit

Valve Type: High Temp Mounting Kit

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

MCL-L1-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

More Info

Product Number:

MCF-000XX-1-Including-mounting-kit

Valve Type: Actuator only

Valve Manufacturer:

Valve Partnumber: N/A

Cv value: 0.0000

Pressure: 0 psi

Connection: N/A

Line Size: 0"

Specifications

Voltages/Current 12-24 VDC, max 3 A @ 24 VDC
110-240 VAC, max 1.5 A @ 240 VAC

Control Options Analog (4-20 mA, 1-5 V, 1-10 V) , Modbus RS485, TTL

Feedback 4-20 mA



Output Torque Range 4 – 915 in-lbs

Output Speed Range 1 – 186 seconds per turn

Positioning Precision +/- 0.25°



Add-On Options Manual override
Battery backup for fail-safe operation
110-240 VAC power option

External temp. range -40 – 65 °C (Heater option)

Life Expectancy 250,000 cycles in specified conditions

Motor Brushless DC motor, computer control

Enclosure Aluminum or stainless steel (NEMA 4 / IP56)

Range/Speed Setting Adjustable by DIP switches inside enclosure

Power Setting Adjustable by DIP switches inside enclosure

End Travel Detection For needle valves, by motion detection



Standard Multi-Turn Actuators Spec Sheet

User Manuals

MCx 4-20 mA
(MCJ, MCL, MCM, MCH and MCF)


Standard multi-turn operating actuators with 4-20 mA control signal with/without feedback and isolated input
Download



Mxx Modbus
(MCJ, MCL, MCM, MCH, MCF MDM, MDL-F, MDH and MDF)


Standard, variable, or discrete position actuators with Modbus RS485 protocol.
Download



MCx TTL
Variable positioning


Standard multi-turn actuators with TTL (variable positioning) control signal and integrated feedback.
Download



MCx Battery Backup
(MCJ-B, MCL-B, MCM-B, and MCF-B)


Standard multi-turn actuators with battery backup fail-safe.
Download



MCx 110 VAC Power
(MCJ-AC, MCL-AC, MCM-AC, MCF-AC and MCH-AC)


110 VAC operated multi turn valve actuators with 4-20 mA control signal with/without feedback and isolated input.
Download



M-Series Part Number Guide

3D Drawings

Scroll our list of downloadable 3D files. Please do not hesitate to contact us if you are unable to find your desired CAD drawing or need custom files. You can use any 3D software to view the .STEP files.
